Web Server Hardening - MySQL


MySQL Security

In order to understand the possible attack can be done on MySQL, please read our write up for SQL Injection at http://www.axcelsec.com/2018/02/penetration-testing-with-owasp-top-10.html.

SHOW DATABASES;
USE MYSQL;
SELECT * FROM user;
SELECT Host,User,Password FROM user;

CIS Benchmark

3. File System Permissions

SHOW VARIABLES WHERE
variable_name = 'datadir' OR
variable_name = 'plugin_dir' OR  #Plugin Directory
variable_name LIKE 'log_bin_basename' OR
variable_name LIKE 'log_error' OR
variable_name LIKE 'slow_query_log_file' OR
variable_name LIKE 'relay_log_basename' OR
variable_name LIKE 'general_log_file' OR
variable_name = 'ssl_key'; #SSL Key Files


4. General

SHOW VARIABLES WHERE variable_name LIKE "version";
SHOW VARIABLES LIKE 'have_symlink'; #Ensure the Value returned is DISABLED.
SHOW DATABASES LIKE 'test'; #Ensure that no rows are returned (Ensure the 'test' Database Is Not Installed)
SELECT * FROM information_schema.plugins WHERE PLUGIN_NAME='daemon_memcached';  #Ensure that no rows are returned
SHOW VARIABLES WHERE variable_name = 'secure_file_priv' AND Value<>''; #The Value should contain a valid path
SHOW VARIABLES WHERE variable_name = 'local_infile'; #Ensure the Value field is set to OFF
SHOW VARIABLES LIKE 'sql_mode'; #Ensure that STRICT_ALL_TABLES is in the list returned.

Ensure the 'test' Database Is Not Installed
SHOW DATABASES LIKE 'test';
DROP DATABASE "test"; #If the above SQL statement is not return zero rows

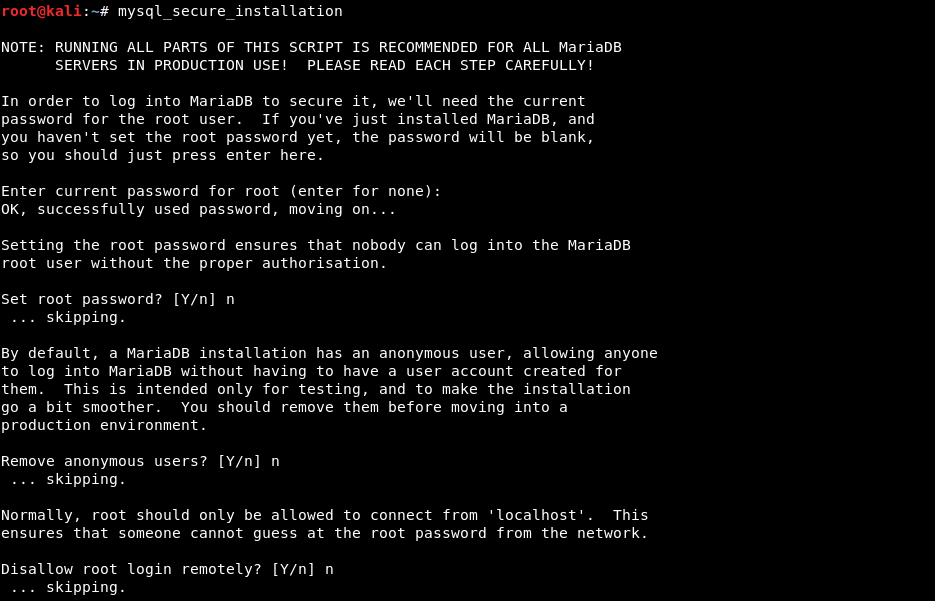

Improve MySQL Installation Security
mysql_secure_installation
#/usr/bin/mysql_secure_installation
#C:\xampp\mysql\bin\mysql_secure_installation.pl
  • set a password for root accounts
  • remove root accounts that are accessible from outside the local host
  • remove anonymous-user accounts
  • remove the test database



5. MySQL Permissions

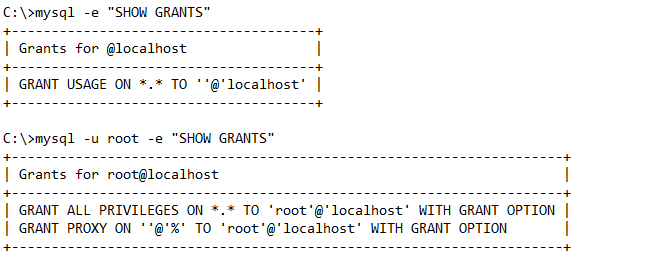

To display the privileges and roles
mysql -e "SHOW GRANTS"
mysql -u root -e "SHOW GRANTS"


To check which accounts have access to what
SHOW GRANTS;
SHOW PRIVILEGES;




Ensure Only Administrative Users Have Full Database Access
SELECT user, host
FROM mysql.user
WHERE (Select_priv = 'Y')
OR (Insert_priv = 'Y')
OR (Update_priv = 'Y')
OR (Delete_priv = 'Y')
OR (Create_priv = 'Y')
OR (Drop_priv = 'Y');

SELECT user, host
FROM mysql.db
WHERE db = 'mysql'
AND ((Select_priv = 'Y')
OR (Insert_priv = 'Y')
OR (Update_priv = 'Y')
OR (Delete_priv = 'Y')
OR (Create_priv = 'Y')
OR (Drop_priv = 'Y'));

Ensure Privileges Is Not Give To Non-Administrative Users
SELECT user, host, File_priv, Process_priv, Super_priv, Shutdown_priv, Create_user_priv, Grant_priv
from mysql.user
where File_priv = 'Y'
OR Process_priv = 'Y'
OR Super_priv = 'Y'
OR Shutdown_priv = 'Y'
OR Create_user_priv = 'Y'
OR Grant_priv = 'Y';

SELECT user, host FROM mysql.db WHERE Grant_priv = 'Y';

Ensure Privileges Is Not Give To Non-Slave Users
SELECT user, host FROM mysql.user WHERE Repl_slave_priv = 'Y';

Ensure DML/DDL Grants Are Limited to Specific Databases and Users
SELECT User, Host, Db, Select_priv, Insert_priv, Update_priv, Delete_priv, Create_priv, Drop_priv, Alter_priv
FROM mysql.db
WHERE Select_priv='Y'
OR Insert_priv='Y'
OR Update_priv='Y'
OR Delete_priv='Y'
OR Create_priv='Y'
OR Drop_priv='Y'
OR Alter_priv='Y';

MySQL Permissions Hardening

REVOKE FILE ON *.* FROM '<user>';  #Disallow from reading and writing files on the server host
REVOKE PROCESS ON *.* FROM '<user>'; #Disable the ability view currently executing MySQL statements
REVOKE SUPER ON *.* FROM '<user>'; #Disable the ability to perform many actions, including view and terminate currently executing MySQL statements
REVOKE SHUTDOWN ON *.* FROM '<user>'; #Disable the ability to shut down the MySQL server
REVOKE CREATE USER ON *.* FROM '<user>'; #Disable the ability to add/drop users, alter existing users' names, and manipulate existing users' privileges
REVOKE GRANT OPTION ON *.* FROM '<user>'; #Disable the ability to grant other principals additional privileges

#Deny request updates that have been made on the master server
REVOKE REPLICATION SLAVE ON *.* FROM <user>;

#Limiting the users with the rights to modify or create data structures
REVOKE SELECT ON <host>.<database> FROM <user>;
REVOKE INSERT ON <host>.<database> FROM <user>;
REVOKE UPDATE ON <host>.<database> FROM <user>;
REVOKE DELETE ON <host>.<database> FROM <user>;
REVOKE CREATE ON <host>.<database> FROM <user>;
REVOKE DROP ON <host>.<database> FROM <user>;
REVOKE ALTER ON <host>.<database> FROM <user>;

Reference: https://dev.mysql.com/doc/refman/8.0/en/privileges-provided.html

6. Auditing and Logging

SHOW VARIABLES WHERE
variable_name LIKE 'log_bin_basename' OR   #Ensure the value returned does not indicate root ('/'), /var, or /usr
variable_name LIKE 'log_error' OR   #Ensure the Value returned is not empty
variable_name LIKE 'log_error_verbosity';   #A value of 2 enables logging of error and warning messages

Auditing and Logging Hardening using my.ini (C:\xampp\mysql\bin\my.ini)

log_error = "mysql_error.log"  #Enabling error logging
log-raw = OFF  #To prevent password written to log files in plain text

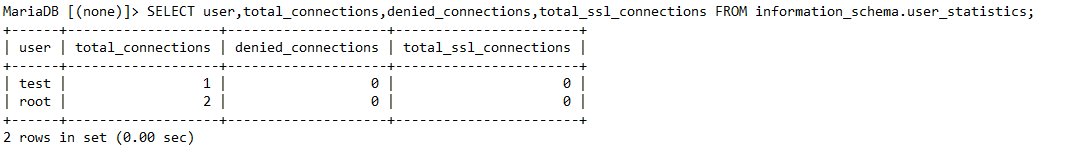

User Statistics
set global userstat=ON;
SELECT user,total_connections,denied_connections,total_ssl_connections FROM information_schema.user_statistics;
SHOW USER_STATISTICS;

User Connection Errors


7. Authentication

SELECT @@global.sql_mode;  #Ensure result contains NO_AUTO_CREATE_USER
SELECT @@session.sql_mode; #Ensure result contains NO_AUTO_CREATE_USER

SELECT User,host FROM mysql.user WHERE authentication_string=''; #No rows will be returned if all accounts have a password set
SELECT user, host FROM mysql.user WHERE host = '%';  #Ensure no rows are returned (No Users Have Wildcard Hostnames)
SELECT user,host FROM mysql.user WHERE user = ''; #Ensure no rows are returned (No Anonymous Accounts Exist)

#SHOW VARIABLES LIKE 'default_password_lifetime'; #default_password_lifetime should be less than or equal to 90
#SHOW VARIABLES LIKE 'validate_password%';
## validate_password_length should be 14 or more
## validate_password_mixed_case_count should be 1 or more
## validate_password_number_count should be 1 or more
## validate_password_special_char_count should be 1 or more
## validate_password_policy should be MEDIUM or STRONG

MySQL Native Password Hashing
SELECT PASSWORD('test');
SELECT CONCAT('*', UPPER(SHA1(UNHEX(SHA1('test')))));


echo -n "test" | sha1sum | cut -c1-40 | xxd -p -r | sha1sum | cut -c1-40 | tr '[a-z]' '[A-Z]'


Anonymous Account
mysql -e "SELECT version(),user(),current_user()"

#Exploitation by Anonymous Account
SHOW SCHEMAS;
SELECT table_schema, table_name FROM information_schema.tables;

USE test;
CREATE TABLE t1(i1 INT NOT NULL AUTO_INCREMENT PRIMARY KEY, v1 VARCHAR(100) NOT NULL);
INSERT INTO t1(i1, v1) VALUES (1, REPEAT('abcde',20)); #abcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcdeabcde
INSERT INTO t1(i1, v1) SELECT NULL, a.v1 FROM t1 a, t1 b, t1 c;


Query OK, 8 rows affected (0.13 sec)

Brute-Force Login

msf > use auxiliary/scanner/mysql/mysql_login
msf > use auxiliary/admin/mysql/mysql_enum
mysqldump --single-transaction --host=192.168.24.2 -u test -p dvwa > dvwa.sql





Authentication Hardening

#To assign a password to a MySQL user account
SET PASSWORD FOR '<user>'@'<host>' = '<clear password>' #'
GRANT USAGE ON *.* TO '<user>'@'<host>' IDENTIFIED BY '<clear password>';#If above statement return "ERROR 1372 (HY000): Password hash should be a 41-digit hexadecimal number"

DELETE FROM mysql.user WHERE user=''; #Removing anonymous accounts
DROP USER '<user>'@'<host>' #removes one or more MySQL accounts and their privileges.

SET GLOBAL default_password_lifetime=90

Pluggable Authentication
SHOW PLUGINS;
SELECT PLUGIN_NAME FROM PLUGINS WHERE PLUGIN_TYPE='AUTHENTICATION';

# Maria DB
# https://mariadb.com/kb/en/library/password-authentication-and-encryption-plugins/

To specify how the server should listen for TCP/IP connections
bind-address="127.0.0.1" #Uncomment the statement in my.ini


8. Network

CIS Assessment
SHOW variables WHERE variable_name = 'have_ssl';  #Ensure the Value returned is YES
SELECT user, host, ssl_type FROM mysql.user WHERE NOT HOST IN ('::1', '127.0.0.1', 'localhost'); #Ensure the ssl_type for each user returned is equal to ANY, X509, or SPECIFIED

SSL System Variables
SHOW VARIABLES LIKE '%ssl%';
SHOW SESSION STATUS LIKE 'Ssl_version';
SHOW SESSION STATUS LIKE 'Ssl_cipher';

Network Hardening
GRANT USAGE ON *.* TO 'my_user'@'app1.example.com' REQUIRE SSL;


9. Replication

CIS Assessment
select ssl_verify_server_cert from mysql.slave_master_info; #Verify the value of ssl_verify_server_cert is 1.
SHOW GLOBAL VARIABLES LIKE 'master_info_repository'; #The result should be TABLE instead of FILE.
select user, host from mysql.user where user='repl' and Super_priv = 'Y'; #No rows should be returned (Limiting replication Users to have the SUPER privilege)
SELECT user, host FROM mysql.user WHERE user='repl' AND host = '%'; # Ensure no rows are returned (Ensure No Replication Users Have Wildcard Hostnames)



Security News

2018
Hacker Fail: IoT botnet command and control server accessible via default credentials
2018 National Exposure Index Research Report (Rapid 7)

2017
Ransomware attacks targeted hundreds of MySQL databases



Reference

Implementing MySQL Security Features (Ronald Bradford, Colin Charles)
